Pipe Crusher With Slice Blade

Name: Pipe Crusher With Slice Blade
Brand: BEISU
Price: 5 USD

Quality Pipe Crusher With Slice Blade for sale

Place of Origin : CN;JIA

Brand Name : BEISU

Certification : CE,ISO

Supply Ability : 200 Set/Sets per Year

Packaging Details : Film packing or wood package as customer requirements

MOQ : 1 - 2 Sets

Price : $5,000.00

Condition : New

Plastic Type : PA, PA, PA, PA, PA, PA, PA, PA

Machine Type : Plastic Shredder

Max.Production Capacity (kg/h) : 800

Production Capacity (kg/h) : 200 - 800 kg/h

Use : Waste Plastic Crusher

Shaft Design : Single

Voltage : 220V/380V/415V/440V

Dimension(L*W*H) : 1800mm*2000mm*1740mm

Power (kW) : 30

Weight (T) : 2000

Warranty : 1 Year

After-sales Service Provided : Online support, Online support, Online support, Online support, Online support

Applicable Industries : Manufacturing Plant

Key Selling Points : Automatic

After Warranty Service : Field maintenance and repair service, Field maintenance and repair service, Field maintenance and repair service, Field maintenance and repair service

Local Service Location : none, none

Showroom Location : none

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Gearbox, Gearbox, Gearbox, Gearbox, Gearbox, Gearbox

Raw material : PE pipes/PVC pipes/Wood/Pallets/Plastic containers

Motor power : 30Kw

Material blade : SKD-11

Blade type : Slice type

Rotary blade : 24

Fixed blade : 4PCS

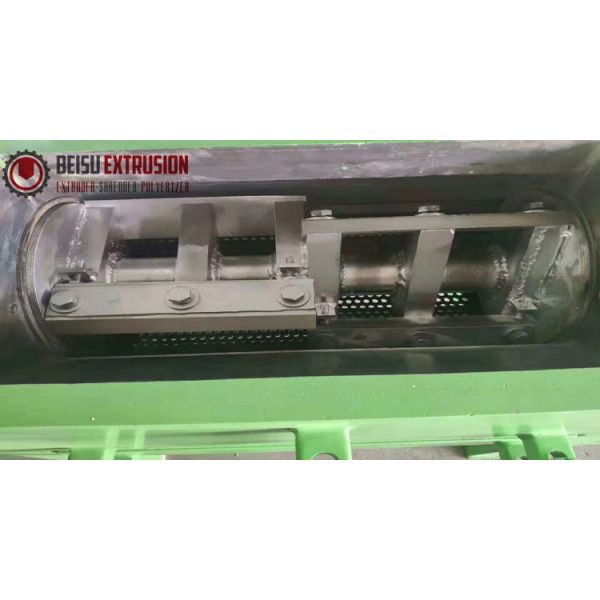

Crushing chamber : 815*470

Bearing brand : NSK or SKF or Wafandian

Final product : 10~14mm

Contactor brand : Internationally renowned brand

Port : SHANGHAI or NINGBO PORT

Contact Now

Application of plastic crusher: The powerful plastic crusher can crush all kinds of crushed and recycled ABS, PE, PP boards; PU, PVC, PC, ABC and other soft/hard plastic plastics and rubber such as plastic profiles, pipes, rods, silk threads, films, waste rubber products. The pellets can be directly supplied for extrusion as raw materials for production.

Application scope: · Plastics-general-purpose plastics in the fields of injection molding, extrusion, blown film, etc., head block materials, etc. · Timber-wooden pallets, logs, wood scraps, etc. · Paper-document paper, wrapping paper, cardboard, etc. · Chemical fiber-carpet, labor insurance, etc. · Composite materials-glass fiber products, automobile windshield, sealing tape, etc.

Model	BS-600	BS-800	BS-1000	BS-1500	BS-2000
Shaft Length(mm)	600	800	1000	1500	2000
Shaft Diameter(mm)	220	400	400	400	400
Move Blades QTY(pcs)	26	46	58	68	68
Fixed Blades QTY(pcs)	2	22	2	3	3
Motor Power(KW)	18.5	37	45	55	75
Hydraulic Power(KW)	2.2	3	4	5.5	5.5
Hydraulic Stroke(mm)	600	850	850	950*2	950*2
Weight(kg)	1600	3500	4000	4500	4800
Capacity	300kg/h	550kg/h	1000kg/h	1500kg/h	1500kg/h

The core features of the plastic crusher:

A1: Plastic powerful crusher has a uniquely designed square feeding port for the crushing of plate materials, which facilitates the crushing of long-shaped plates and improves work efficiency. A2: The plastic powerful crusher is double-layered into the hopper, and filled with soundproof materials, which effectively reduces work noise; and it can effectively reduce the noise at work; A3: The crushing room of the plastic powerful crusher is fully polished and ground, and the thick steel plate is welded and processed as a whole, with good precision; A4; The tool holder of the plastic powerful crusher is processed by wire cutting to ensure accuracy, and it is perfectly matched with the central shaft, and the assembly is clean and neat, and the assembly is clean and neat. A5: The central shaft and the tool holder of the plastic powerful crusher are assembled by hydraulic pressure, without any solder joints, no hidden materials, which is conducive to cleaning, and avoids the deformation of the central shaft due to welding A6: The top knife block of the blade-shaped knife holder of the plastic powerful crusher is cut from the same thick steel plate as the knife holder, which is beautiful and generous, and will not shift or fall off over the years, and at the same time avoid welding slag storage materials A7: The claw-knife type of the plastic powerful crusher adopts a symmetrical stepped arrangement to disperse the impact load, so that large-size pieces of material are broken more labor-saving, each knife can be rotated 180 degrees for secondary use, reducing the number of knife sharpening A8: Plastic powerful crusher cutters are made of imported alloy steel. According to the characteristics of different materials, SKD-11 or SKH2 inlaid steel is selected. The perfect material ensures excellent quality.

Product Tags:

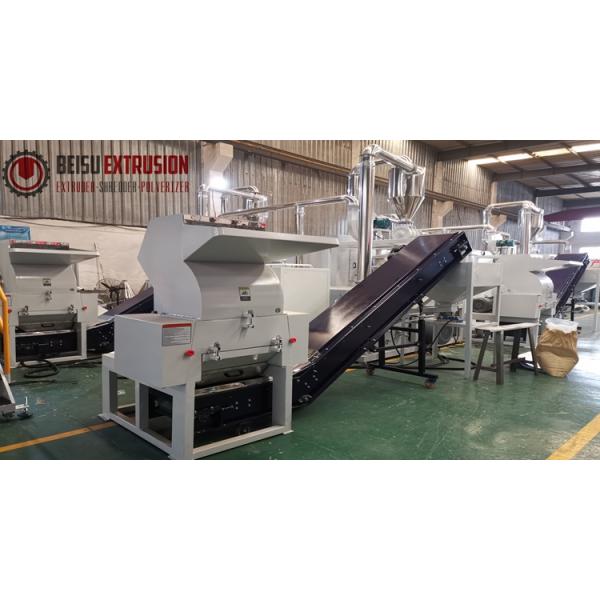

Pipe Crusher With Slice Blade Images
